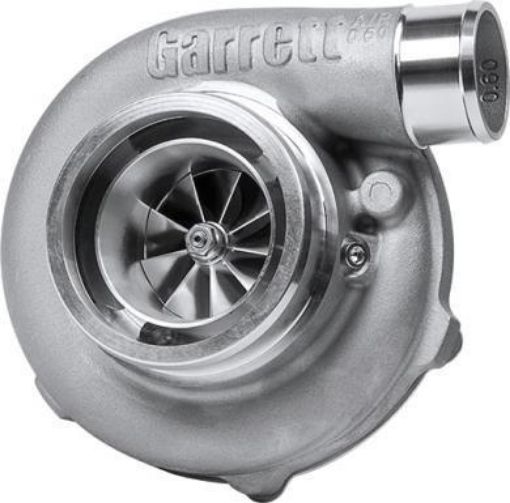

Garrett GTX3576R GEN II 856801-5046S 400-750PS T3 1.06 A / R V-Band keramisk kugleleje
450 - 850Hk
2.0L - 4.5L
Turbocharger Part Number Chart
Compressor Turbine
Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
GTX3582R Standard Rotation 66mm 82mm 64 0.70 68mm 62mm 84
GTX3582R Reverse Rotation 66mm 82mm 64 0.70 68mm 62mm 84
Notes: Assembly Kit PN Super Core PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
Assembly Kit PN Includes Super Core and Turbine Kit 856801-5069S 851154-5004S 740902-0012 0.63 T3 V-Band Free Float N
856801-5068S 851154-5004S 740902-0011 0.82 T3 V-Band Free Float N
856801-5067S 851154-5004S 740902-0010 1.06 T3 V-Band Free Float N
856801-5072S 851154-5004S 740902-0018 0.63 T4 V-Band Free Float N
856801-5071S 851154-5004S 740902-0017 0.82 T4 V-Band Free Float N
856801-5070S 851154-5004S 740902-0016 1.06 T4 V-Band Free Float N
856801-5081S 851154-5004S 740902-0033 0.61 V-Band V-Band Free Float N
856801-5080S 851154-5004S 740902-0032 0.83 V-Band V-Band Free Float N
856801-5079S 851154-5004S 740902-0031 1.01 V-Band V-Band Free Float N
Reverse Rotation Configurtation 856803-5004S 844626-5004S 740902-0056 0.61 V-Band V-Band Free Float N
856803-5005S 844626-5004S 740902-0057 0.83 V-Band V-Band Free Float N
856803-5006S 844626-5004S 740902-0058 1.01 V-Band V-Band Free Float N
