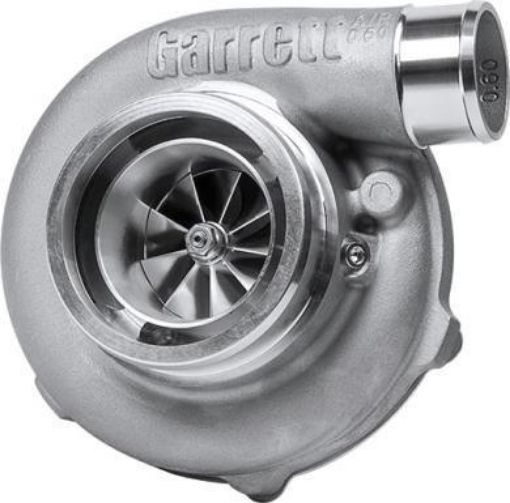

Garrett GTX3576R GEN II 856801-5047S 400-750PS T3 82 A / R V-Band ball bearing ceramic ball bearing
Exhaust casing 82 A / R T3 - 3 "V-belt outlet
External wastegate
Fresh air housing High-Flow 60A / R - Trim 58
Fresh air wheel: Exducer 76mm - Inducer 58mm
Keramisk Kugleleje
Power 400-750PS
olie og vand-kølet
Inconel turbine Inconer: Inducer 68mm - Exducer 62mm - Trim 84
Egnet til:
motorer med forskydning fra 2.0 til 4.5L 400-750PS
Turbocharger Part Number Chart
Compressor Turbine
Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
GTX3582R Standard Rotation 66mm 82mm 64 0.70 68mm 62mm 84
GTX3582R Reverse Rotation 66mm 82mm 64 0.70 68mm 62mm 84
Notes: Assembly Kit PN Super Core PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
Assembly Kit PN Includes Super Core and Turbine Kit 856801-5069S 851154-5004S 740902-0012 0.63 T3 V-Band Free Float N
856801-5068S 851154-5004S 740902-0011 0.82 T3 V-Band Free Float N
856801-5067S 851154-5004S 740902-0010 1.06 T3 V-Band Free Float N
856801-5072S 851154-5004S 740902-0018 0.63 T4 V-Band Free Float N
856801-5071S 851154-5004S 740902-0017 0.82 T4 V-Band Free Float N
856801-5070S 851154-5004S 740902-0016 1.06 T4 V-Band Free Float N
856801-5081S 851154-5004S 740902-0033 0.61 V-Band V-Band Free Float N
856801-5080S 851154-5004S 740902-0032 0.83 V-Band V-Band Free Float N
856801-5079S 851154-5004S 740902-0031 1.01 V-Band V-Band Free Float N
Reverse Rotation Configurtation 856803-5004S 844626-5004S 740902-0056 0.61 V-Band V-Band Free Float N
856803-5005S 844626-5004S 740902-0057 0.83 V-Band V-Band Free Float N
856803-5006S 844626-5004S 740902-0058 1.01 V-Band V-Band Free Float N
