Toyota Supra 93-98 - PNP motorstyring

AEM motorstyring. Series 2 Plug and Play EMS til Toyota Supra.

Lagerstatus: Bestillingsvare

Stock status explained
Lagerstatus	Her vises det antal vi har på vores lager i Ringkøbing
Bestillingsvare	Bestillingsvare bestilles hjem når du ligger en order ved os - Leveringstid kan variere
Antal varer på vej hjem fra leverandør*	Varen er bestilt ved vores leverandør - Forventet leveringsdato er hvornår vi forventer at have den på vores lager

13.975,00 (DKK) inkl. moms

stk.:

i h

Overview
Contact Us

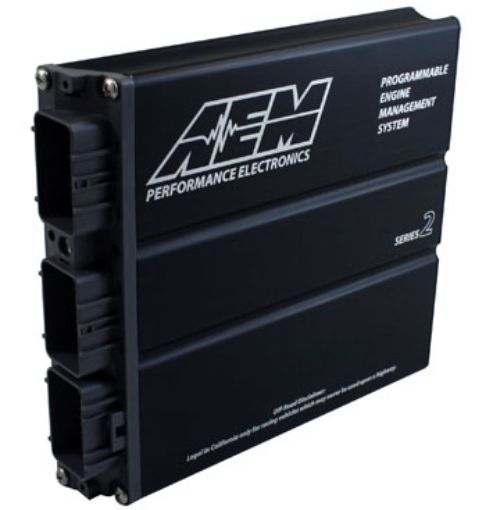

Series 2 Plug & Play Engine Management System

AEM's Series 2 EMS is a complete engine control system that plugs into the factory harness and uses the factory sensors. This means you do not need to replace any parts of the harness or sensors, just plug the EMS into the harness and begin tuning! The Series 2 EMS for the MKIV Supra allows you to control every aspect of your 2JZ. From VVTi to rev limit, timing, bigger injectors, boost control, nitrous injection, individual cylinder fuel and timing trims and for you drag racers there's even anti-lag! Get total control for your Supra with the Series 2 from our new tuning software - AEM Tuner.

Outputs
Injector Outputs	12 Peak & Hold
Coil Outputs	6
Selectable direct drive or 0-5V Coil Output	Yes
Direct plug in, no jumper harness required	Yes
General purpose LS outputs	11
General purpose HS outputs	2
Individual cylinder ignition trims	Yes
Individual cylinder fuel trims	Yes
Inputs
Trigger inputs (Ref/Sync)	4
Analog voltage inputs	14
Configurable Analog/RTD/Thermister inputs	4
Switch inputs	5
Lambda inputs	2x
Knock sensors	2
User adjustable knock sensor center frequency	Yes
Communication
USB comms	Yes
RS232 comms	Yes
Communication cables included	Yes
Fully enabled editing/logging software included	Yes
CAN bus equipped	Yes
RS232 datastream output	19 ch
CAN datastream output	32 ch
Communicates with AIM Dash/Dataloggers	Yes
Communicates with Racepak Dash/Dataloggers	Yes
DATA Acquisition
Internal data logging	1 MB
Maximum internal logging rate (per channel)	250 Hz
PC logging	Yes
Data analysis using AEMLog	Yes
Functions and Features
All channels/maps/tuning options unlocked	Yes
Boost control	Yes
Groundspeed based boost target	Yes
Nitrous injection	Yes
Staged injection	Yes
Ground speed limiting	Yes
Rate of Acceleration Control	Yes
Overrun boost enhancement (anti-lag)	Yes
Gear change ignition cut (shift-without-lift)	Yes
Stepper motor idle control	Yes
Password protected calibrations	Yes
Fuel & Ignition rev limiters	Yes
"In cockpit" global fuel trim capability	Yes
Gear dependent shift light	Yes
Evap/Purge function	Yes
DC Motor control	2 Ch
Software definable "virtual" switch inputs	2
EGT Based fuel trims	Yes
Maximum boost limit	None
Basic automatic transmission control	No
Advanced automatic transmission control	No
Physical Dimensions
Length	203 mm
Width	178 mm
Height	41 mm
Finish	Black Anodized

This product fits the following vehicles:

• 1993 to 1998 Toyota Supra Twin Turbo 3.0L Turbo
